Tunnel Hill Hydro

California, USA

Statistics:

bullet

Turbine: One 510mm double nozzle Turgo

bullet

Generator: One 670kW US Motor Induction Generator @ 727 RPM

bullet

Rated head: 74.3m

bullet

Rated flow: 0.971m3/sec

bullet

Commissioned: June 2009

This hydroelectric power plant is located on the irrigation system of the Georgetown Divide Public Utilities District (GDPUD).  Currently owned and operated by Tunnel Hill Hydro LLC, this project was in operation from 1984 to 1998 when the original power contract expired, and was redeveloped by Henwood Associates, Inc. in February 2006.

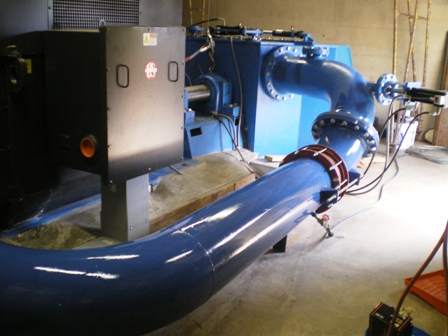

Turgo Hydro Turbine Generator in California

Turbine and generator

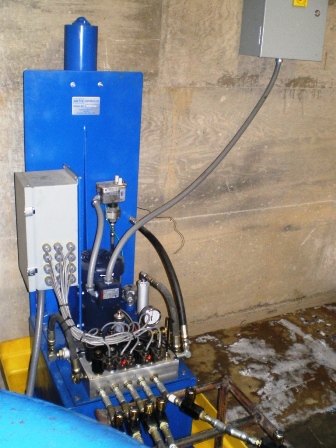

Hydraulic Power Unit for the Turgo Turbine Generator in California
Hydraulic power unit for turbine operation

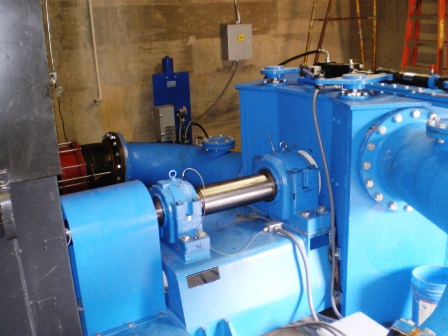

Turgo Hydro Turbine Generator in California

Turbine

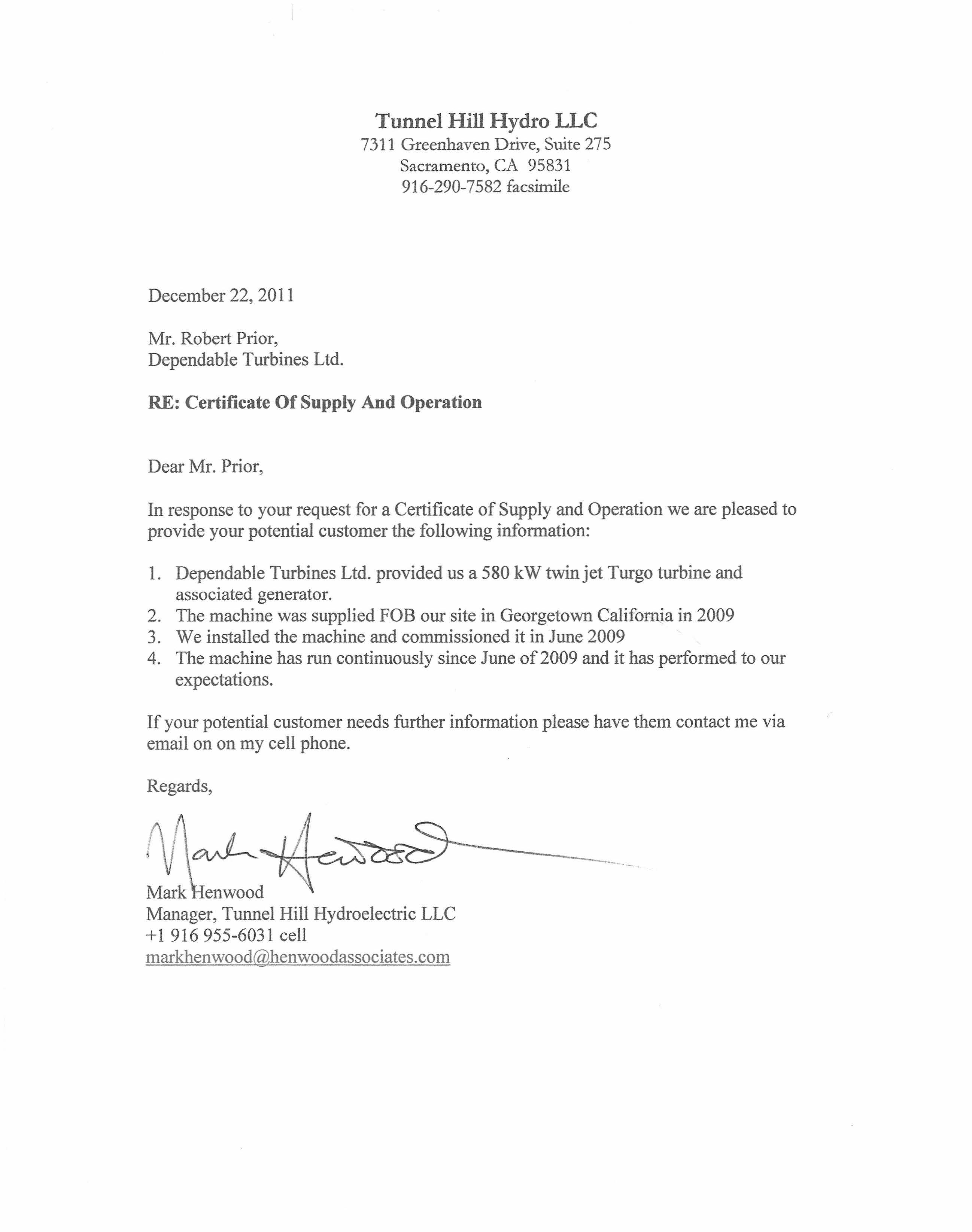

Tunnel Hill Turgo Turbine Certificate of Supply and Operation
Certificate of Supply and Operation
